whirlpool bathtub pump from China manufacturer - Hengtai International Co., Ltd.

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JA series

Packing: Carton

Means of Transport: Sea, air or other way

Delivery Date: 25-30days after receipt dow...

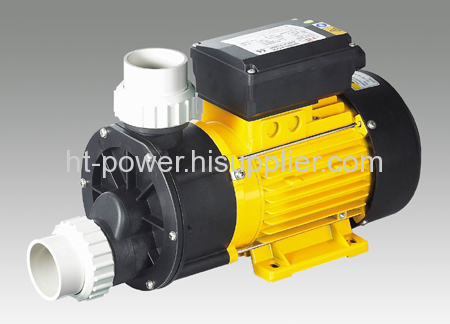

It's most suitable for whirlpool tub or spa system. The pumps use aluminum-alloy shell, 2-pole induction motor, single phase with thermal protector.

JA series whirlpool bathtub pump (spa pump), pump casing¡¢pump cover and impeller are made of reinforced engineering plastic, stainless steel shaft, mechanical seal with pneumatic control, aluminum-alloy base, operation in convenience and safe. They self-drain water from bathtub after each use for fresh water. It is most suitable for whirlpool tub or spa systems.

Motor: Aluminum-alloy shell, 2-pole induction motor, single-phase motor with thermal protector, Class F and IP55, continuous duty.

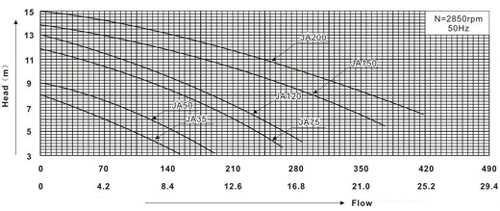

Tachnical Data

Model	Power P1		Q. Max. (l/min)	H. Max (m)	Inlet/ Outlet	Weight (kg)	Packing Size (cm)
Model	Hp	Kw	Q. Max. (l/min)	H. Max (m)	Inlet/ Outlet	Weight (kg)	Packing Size (cm)
JA35	0.35	0.25	150	7.5	G2 1/4"	4.5	35x18x25
JA50	0.50	0.37	180	10	G2 1/4"	5.5	35x18x25
JA75	0.75	0.55	260	12	1 1/2FBT	8.0	39x19x24
JA120	1.20	0.90	320	13	1 1/2FBT	9.0	39x19x24
JA150	1.50	1.1	380	16	G2 1/4"	12	45x22x25
JA200	2.00	1.50	450	16	G2 1/4"	13.5	45x22x25
